62in Guardian Recycler Deck

Grouped product items
Item #	R&R Part #	Description	Qty

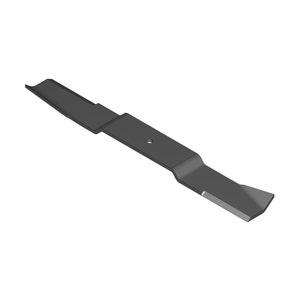

1	R92-5608 Replaces Toro 92-5608 92-5608-03	Mower Blade - 21.75 in Tech Note: Detail Description:	Required: 3

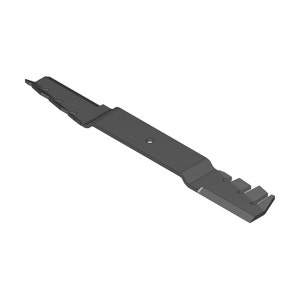

1A	R92-5608M Replaces Toro 104-1303 107-0214-03 92-5608M	Mower Blade - Mulcher 21.75 x 2.5in x 1/2 Mt Hole Tech Note: Detail Description:	Required: 3

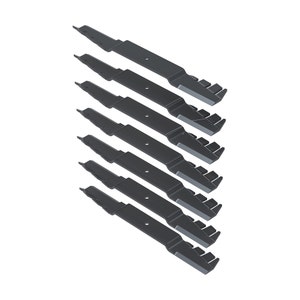

1A	R108-1450 Replaces Toro 108-1450	Mower Blade Kit - Gator Mulching SET/7 Tech Note: Detail Description: Includes 7 ea: R92-5608M Gator Mulching Rotary Blades

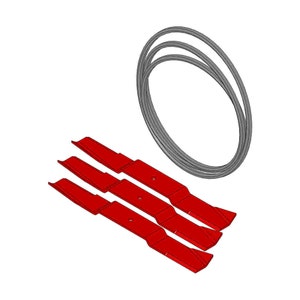

1	R95-3073 Replaces Toro 95-3073	Kit - Blade and Belt Tech Note: Detail Description: Includes: 3 ea: R92-5608-03 Rotary Blades & 1 ea: R92-5588 Deck Belt

2	R92-5816 Replaces Toro 92-5816	Bolt - Hex HD 1/2-20 x 2-1/4 Tech Note: Detail Description:	Required: 3

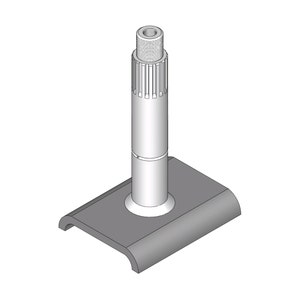

3	R92-5604 Replaces Toro 92-5604	Shaft - Spindle - 5 in Tech Note: Detail Description:	Required: 3

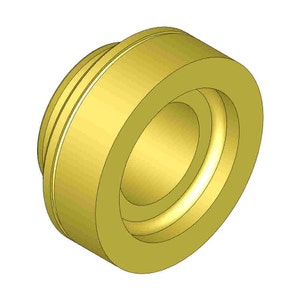

4	R92-5606 Replaces Toro 92-5606	Spacer - Spindle Tech Note: Detail Description:	Required: 3

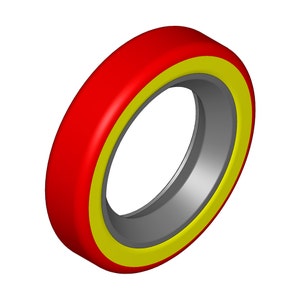

5	R253-139 Replaces Toro 253-139	Seal - Spindle Tech Note: Detail Description:	Required: 6

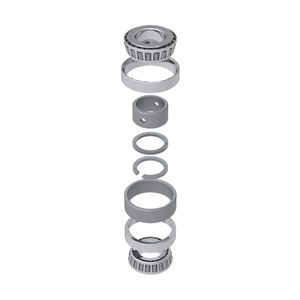

6	R46-8530 Replaces Toro 27-0960 46-8530	Bearing - Set with Rings/Spacers Tech Note: Detail Description: Includes 2 ea: R254-72 Bearings, R254-94 Cones, Spacers & Rings	Required: 3

7	R471219 Replaces Toro 30-8360 302-2 302-24 302-31 302-52	Zerk - Grease Tech Note: Detail Description:	Required: 3

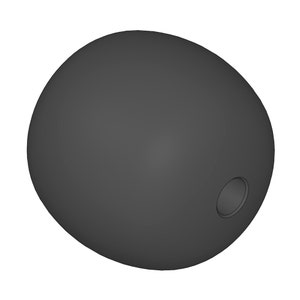

8	R29-4820 Replaces Toro 29-4820	Roller Tech Note: Detail Description:	Required: 2

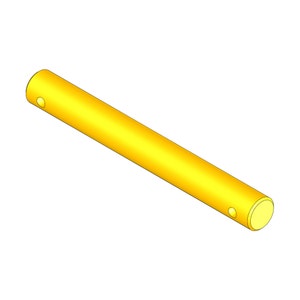

9	R57-0680 Replaces Toro 57-0680	Shaft - Roller - 4-1/4 Tech Note: Detail Description:	Required: 2

10	R57-0690 Replaces Toro 57-0690	Pin - Roller Shaft Tech Note: Detail Description:	Required: 3

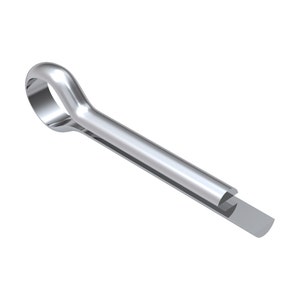

11	R3272-11 Replaces Toro 01-151-0010 01-151-0040 28-18-D 28-28-D 3211-72 3272-11	Pin - Cotter Tech Note: Detail Description:	Required: 3

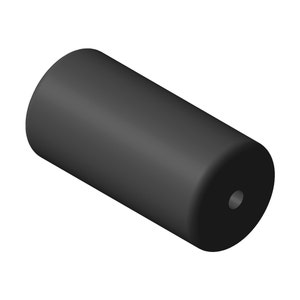

12	R36-1740 Replaces Toro 36-1740	Roller - Rotary Deck Tech Note: Detail Description:	Required: 1

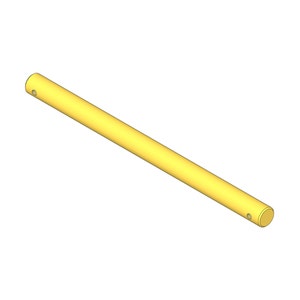

13	R40-6400 Replaces Toro 40-6400	Shaft - Roller Tech Note: Detail Description:	Required: 1

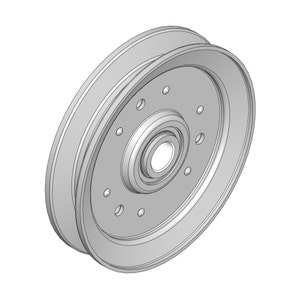

14	R63-1540-03 Replaces Toro 63-1540 63-1540-03	Pulley - Idler Tech Note: Detail Description:	Required: 3

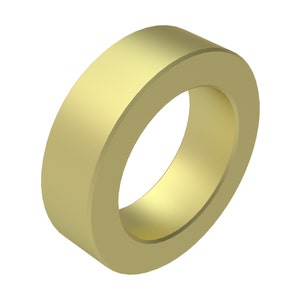

15	R63-0070 Replaces Toro 26-1580 63-0070	Spacer - 1/2 HOC Tech Note: Detail Description:	Required: 12

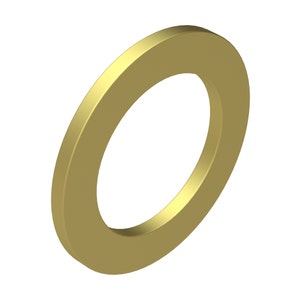

16	R3-6781 Replaces Toro 3-6781	Washer - Thrust - Castor Wheel Tech Note: Detail Description:	Required: 8

17	R94-1291 Replaces Toro 94-1291	Bushing - Flanged Tech Note: Detail Description:	Required: 4

18	R302-5 Replaces Toro 21-6010 302-11 302-37 302-47 302-5 302-57 302-58 302-6 31-0300 32-9660 60-0800 62-3880 92-4181	Fitting - Grease Tech Note: Detail Description:

19	R98-7068-01 Replaces Toro 92-5575 98-7068 98-7068-01	Caster Fork Tech Note: Detail Description:	Required: 2

20	R325-22 Replaces Toro 01-150-0650 01-178-0844 325-21 325-22	Bolt - Hx HD 1/2-13 x 5 1/2 Tech Note: Detail Description:	Required: 4

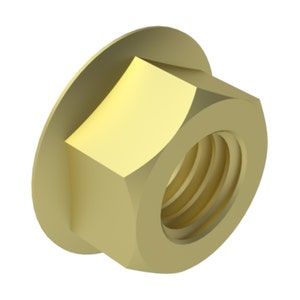

21	R32128-23 Replaces Toro 32128-23 3218-23 99-5107	Nut - Lock Hex Flanged 1/2-13 Tech Note: Detail Description:	Required: 4

22	R453017 Replaces Toro 01-166-0050 01-166-0240 01-166-0800 24-13-AD 24-14-AD 32-8110 3256-26 3256-6 453017 69-8980 87-7270	Washer - Flat 1/2 Tech Note: Detail Description:	Required: 8

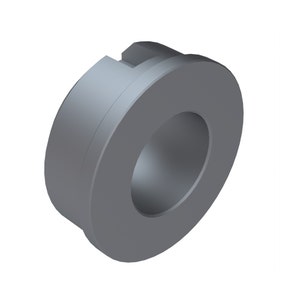

23	R62-5580 Replaces Toro 62-5530 62-5580	Bearing - Flanged - Caster Tech Note: Detail Description:	Required: 8

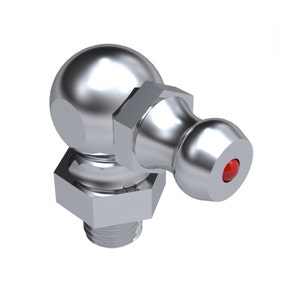

24	R302-40 Replaces Toro 302-13 302-40	Fitting - Grease Tech Note: Detail Description:	Required: 4

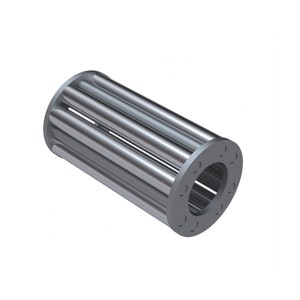

25	R83-4740 Replaces Toro 83-4740	Bearing Tech Note: Detail Description:	Required: 4

26	R62-4340 Replaces Toro 62-4340	Bushing - Spanner Front Tech Note: Detail Description:	Required: 4

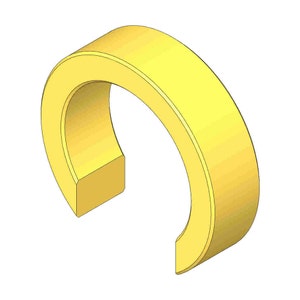

27	R92-8866 Replaces Toro 92-1764 92-8866	Spacer - Castor Fork Tech Note: Detail Description:	Required: 12

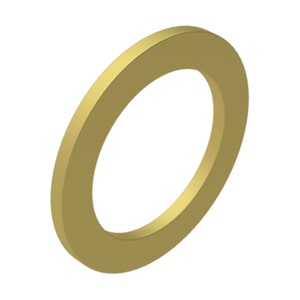

28	R92-1765 Replaces Toro 92-1765	Washer - Thrust Tech Note: Detail Description:	Required: 4

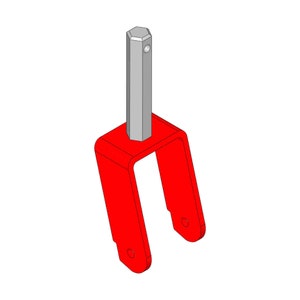

29	R92-5578-01 Replaces Toro 92-5578 92-5578-01	Caster Fork - Rear Tech Note: Detail Description:	Required: 2

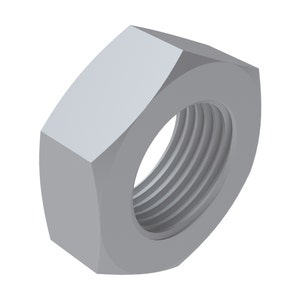

30	R444742 Replaces Toro 32146-20 9150906 915090P	Nut - 3/4-16 Gripco Centerlock Tech Note: Detail Description:	Required: 3

31	R150565 Replaces Toro 92-5588	Belt - Deck Tech Note: Detail Description:	Required: 1

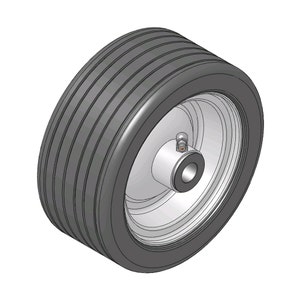

32	R85-5760 Replaces Toro 85-5760	Wheel Assy - 8 x 3.50 Solid Tech Note: Detail Description:	Required: 2

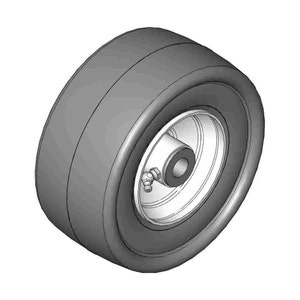

33	R99-1268 Replaces Toro 99-1268	Castor Wheel Assy 8x3.5-4 Smooth Tech Note: Detail Description: Includes: R62-5580 Bearing & R62-5570 Bearing	Required: 1

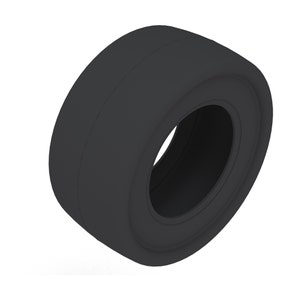

33	R93-9939 Replaces Toro 93-9939 98-2877	Tire - 8x3.50-4 (4 Ply) Sm Pneu Tech Note: Detail Description:	Required: 4

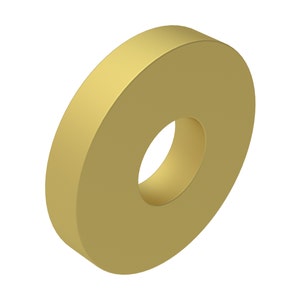

34	R70-8040 Replaces Toro 70-8040	Washer Tech Note: Detail Description:	Required: 2

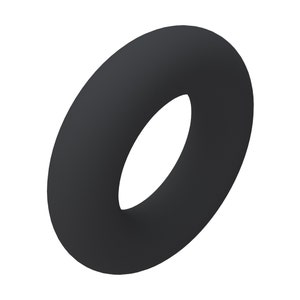

35	R68-8950 Replaces Toro 68-8950	Tube - Castor Wheel 9x3.50-4 TR87 Tech Note: Detail Description:	Required: 1

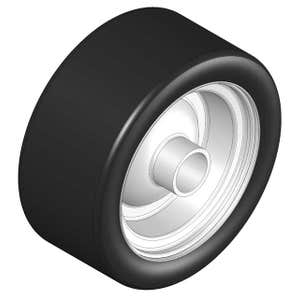

36	R100-2348 Replaces Toro 100-2348	Rim Assy with Bearings Tech Note: Detail Description: Includes 2ea R62-5580 Bearings & 1 ea R62-5570 Bearing.	Required: 4

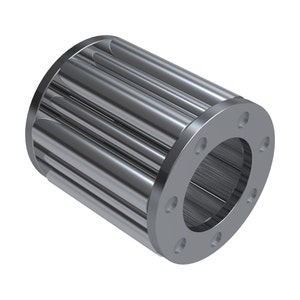

37	R62-5570 Replaces Toro 62-5570	Bearing - Castor Wheel Tech Note: Detail Description:	Required: 8

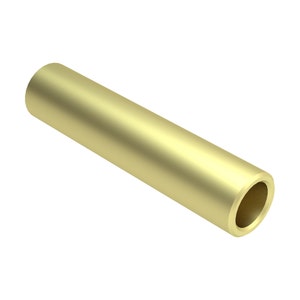

38	R68-8980 Replaces Toro 68-8980	Bushing - Spanner Wheel Tech Note: Detail Description:	Required: 4

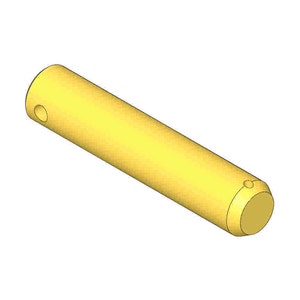

39	R98-2330 Replaces Toro 98-2330	Pin - Pivot Assy Tech Note: Detail Description:	Required: 2

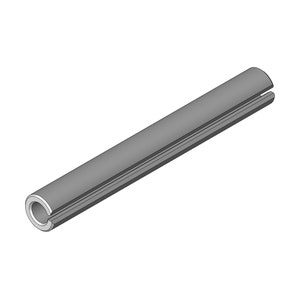

40	R32121-61 Replaces Toro 32121-61	Pin - Spring Roll 7/32 x 1-3/4 Tech Note: Detail Description:	Required: 2

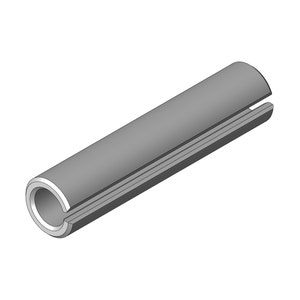

41	R32121-67 Replaces Toro 32121-67	Pin - Spring Roll 3/8 x 1-3/4 Tech Note: Detail Description:	Required: 2

42	R3272-19 Replaces Toro 3272-19	Pin - Cotter Tech Note: Detail Description:	Required: 2
